ROLL-IN BLAST CHILLER/FREEZER 120/72 KG/CYCLE PRESET FOR REMOTE COOLING UNIT

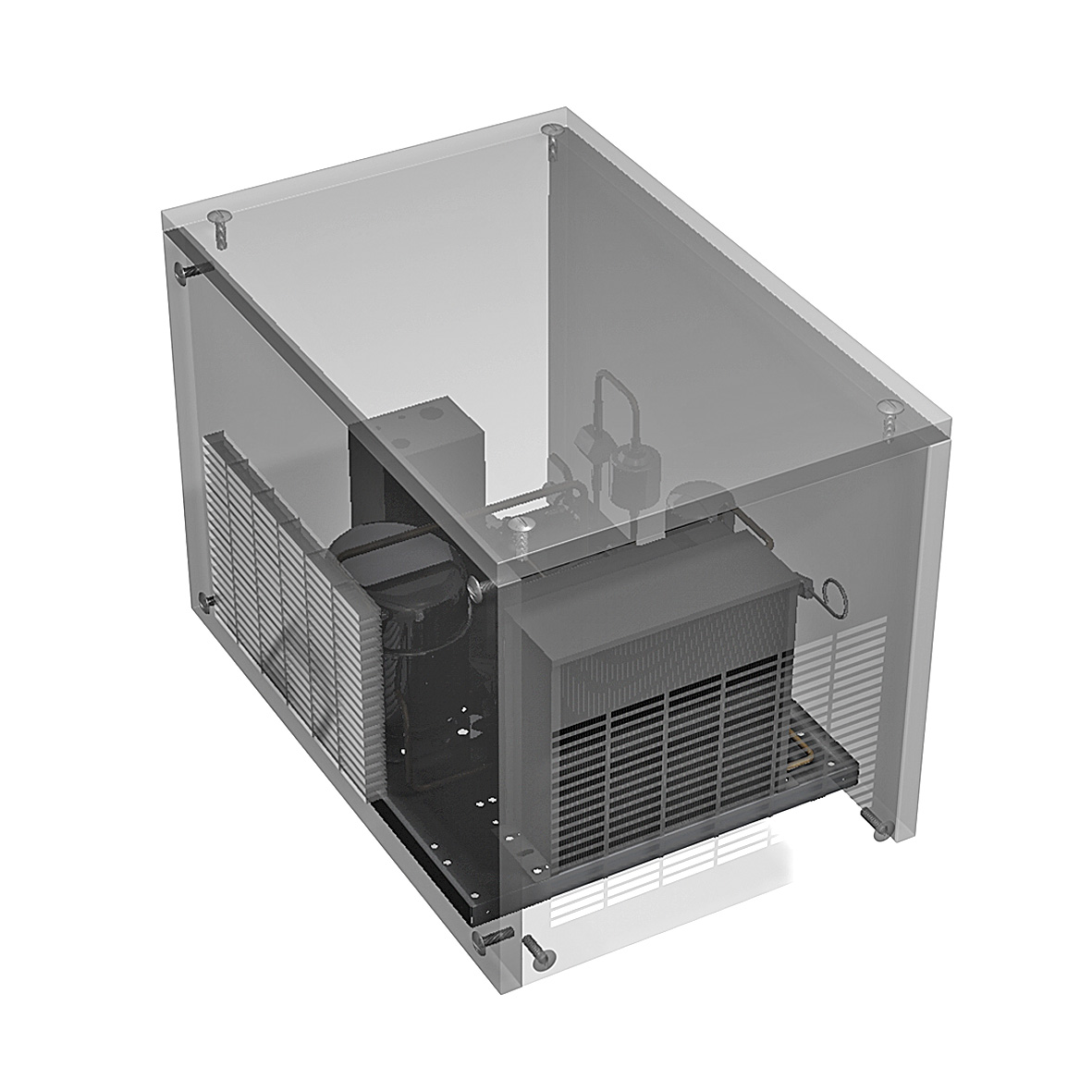

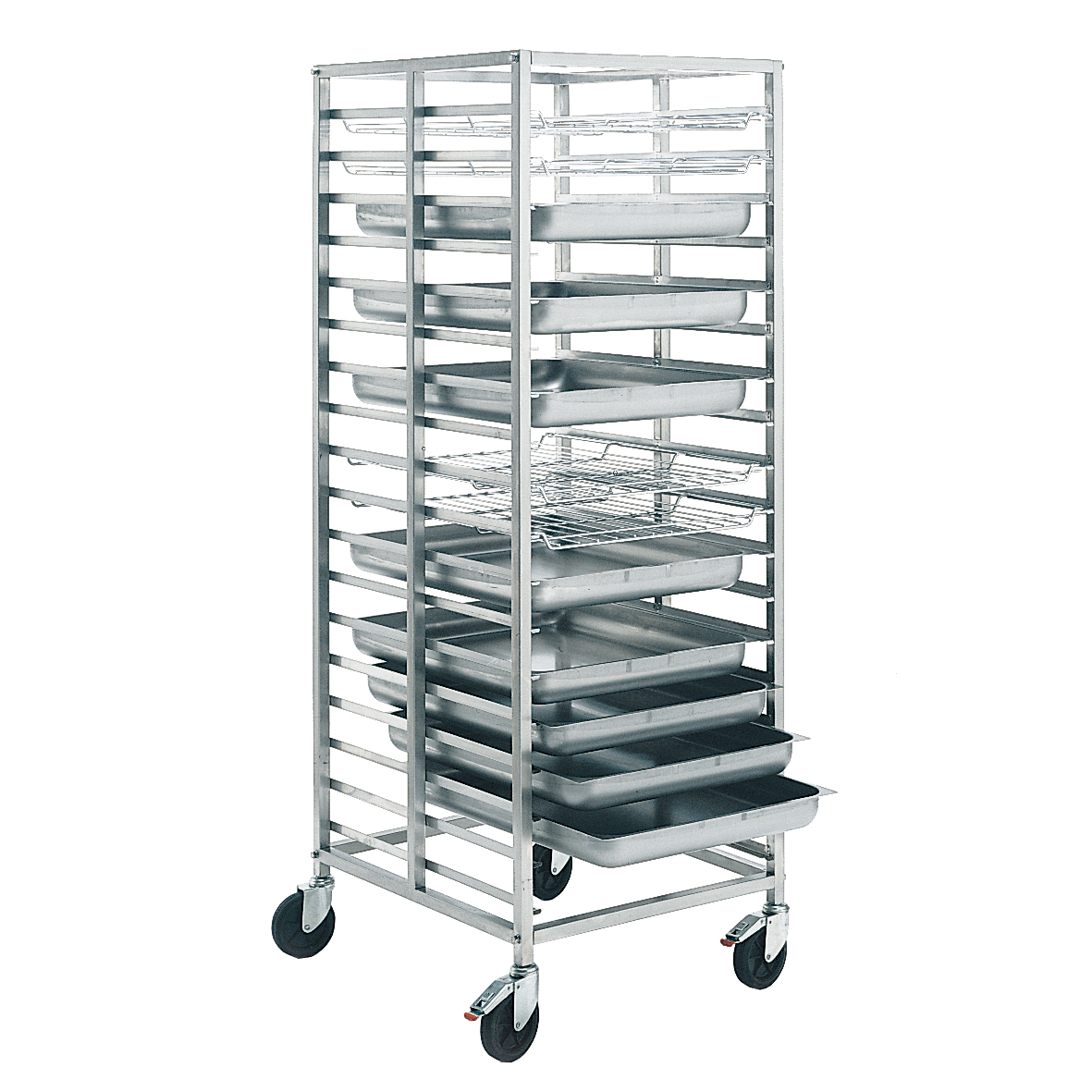

Multifunction blast chiller and freezer made of AISI 304 stainless steel. Production per cycle: 120 kg from +90°C to +3°C at product core in 90 minutes; 72 kg from +90°C to -18°C at product core in 240 minutes. Inner compartment useful for nr. 20 containers GN 1/1 or 60x40 cm trolley. LCD control panel board and encoder, multipoint probe. Without motor group, preset for remote cooling unit. It can be connected via Ethernet to the APO.LINK – Industry 4.0 – portal for real-time control of the appliances, and to export and view the data log and process parameters.
| Supplied core probe | IFR Multipoint |
| Category | multipurpose blast chiller - freezer |
| Max level/containers | GN 1/1 - 60X40 (Roll-In) |
| Production per cycle | 120 kg (+90°C÷+3°C); 72 kg (+90°C÷-18°C) |
| Defrosting type | electric |
| Cooling power | W 5300 |
| Working voltage | 400V 3N ~ 50 ÷60 Hz |
| Net Weight | 280 kg |
| Gross Weight | 380 kg |
| Packing Width | 122 cm |
| Packing Height | 248 cm |
| Packing Depth | 147 cm |
| Width | 105 cm |
| Height | 226 cm |
| Depth | 125 cm |
| Electric Power | 3,6 kW |
| Electric supply height | 230 cm |
| Dimensions | 105x125x226 cm |
| Packing | 122x147x248 cm |
